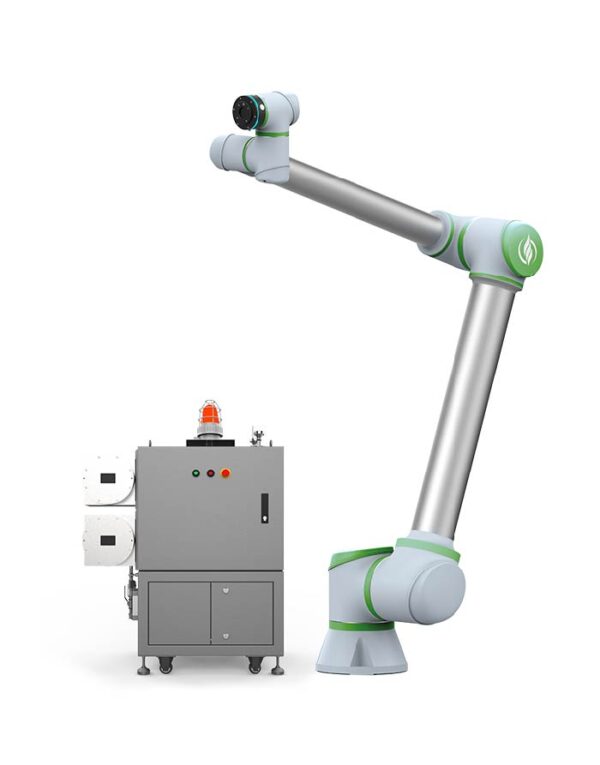

This series includes four explosion-proof collaborative robot products: X25-1800 ATEX, X20-1400 ATEX, X16-2000 ATEX, X10-1300 ATEX. As a protective wall for front-line high-risk personnel, it can replace front-line high-risk operators to work in various flammable, explosive, toxic, harmful, high-temperature and high-pressure oil, natural gas and chemical environments.The significant advantages of load handling and working radius makes it suitable for a wider range of application requirements. These models are also equipped characteristics such as safety, easy operation, quick deployment, and low power consumption.
1. Explosion Proof
● Explosion Proof: Ex db eb pxb IIC T4 Gb/Ex pxb tb IIC T130°C Db.
2. Replace High_x0002_Temperature Operation
● Replace the front-line high-risk operators in all kinds of flammable, explosive, toxic, harmful, high-temperature and high-pressure oil, natural gas and chemical environments, and carry out work all day long.
3. Multiple ExplosionProof Design
● Multiple explosion-proof design, it can work normally at an ambient temperature of 50°C.
4. Smart
● Can configured various intelligent sensing devices to conduct realtime collection and intelligent analysis of
on-site environmental data, improve the digital operation and maintenance ability comprehensively of enterprises.
5. Easier-to-use
● With traction teach programming, less limitation to robot user.
6. Light and Handy
● Can be quickly deployed and redeployed
toadapt to production line changes.
7. Widen Application
● Payload 14kg-10kg, working range 2000mm-1300mm
| Control Box | |
| Weight | 160kg |
| Size | 1370*975*520mm |
| Power Supply | 200-240VAC, 47-63HZ, 8A/100-200VAC, 47-63HZ, 16A |
| Rted Power | 600W |
| Cable Length | 5m (For other specifications, please consult your dealer) |
| Communication Mode | TCP/IP, Modbus/TCP, CAN, RS485, Profiet |
| Communication I/O | 8DI, 8DO (PNP, 24V/MAX500mA)/4A(Voltage), 4AI(Current) |
| Expand I/O | 16DI, 16DO (PNP, 24V/MAX500mA)/4AI(Voltage), 4AI(Current) |
| IP Class | IP65 |
| Operation Temperature | -10℃-50℃ |
| Storage Temperature | -40℃-55℃ |
| Humidity | 20%-90%RH |
| Explosion Proof | Ex db eb pxb IICT4Gb/Ex pxb tb IIIC T130℃ Db |
| Type of Gas Source | Clean Air |
| Teach Pendant | |
| Size | 248x172x22mm |
| OS | Android 10.0 |
| Resolving Power | 1280*800 |
| VGA Size | 10.1 16:10 |
| IP Class | IP68 |
| Weight | 1095g |
| Power | AC100V~240V, 50Hz/60Hz, Output DC 5V/3A |
| DC Ports | DC 5V-3A ∮3.5mm |
